Introduction:

Multi-media filter is designed for enhanced water quality filtration for the removal of organic and inorganic suspended solids down to 5 microns. Multi-media filter may be used as a stand-alone system or in conjunction with or as a pretreatment for other filtration technologies. The Multi-media filtration systems utilize a vertical side shell with accompanied reverse stacked media for progressive filtration through the filtration system. All our industrial media filters utilize our simple backwash system for ease of operation and consistent water quality. Common use filter media are quartz sand, anthracite coal, manganese sand and so on, it is mainly used for water treatment in addition to the prophase of turbidity, soften water, pure water pretreatment, such as water turbidity can be up to 3 degrees.

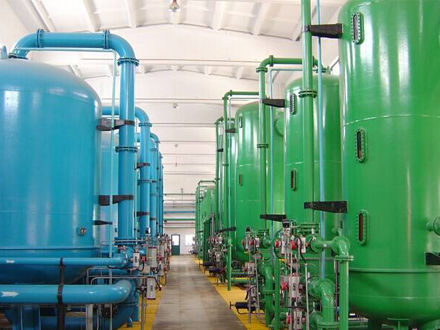

All industrial filtration systems are shipped as a complete, finished, assembled and packaged unit. Each system is skid mounted with tanks, valves, manifolds, controller, tubing, electrical solenoids and removable underdrain assembled and ready for water source and power hookup.

Performance levels can be modified to remove suspended solids of a given size range consistent with desired application objectives.

Application:

Widely used in water treatment, chemical, oil, automobile, light industry, pharmacy, dye, metallurgy, mineral processing, food, electroplating and so on industries.

1.Removal of organic and/or inorganic suspended solids down to 5 microns with enhanced solids capacity vs. single media sand filtration.

2.Storm water runoff, industrial process water, incoming plant water, waste water clean-up, industrial water for plant reuse.

3.Pre-filtration in applications such as granular activated carbon, reverse osmosis, cartridge or bag filtration and deionized water.

Model：

Specification:

1.Tank material: GRP, Carbon Steel, Stainless Steel.

2.Working pressure:≤0.6Mpa

3.Working temperature: 5℃-40℃(special temperature can be customized)

4.Operation: manual or automatic

5.Dia.: φ1000-φ2000

6.Filtration speed: 5m3/h-40m3/h

7.Backwashing time is about 10 to 15 minutes, to discharge the water clear, then shut down into the water pump, close the valve.
